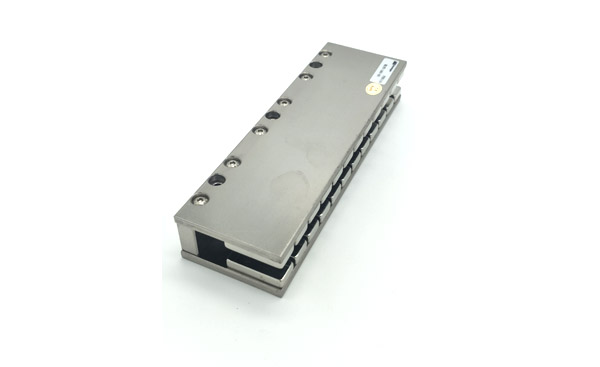

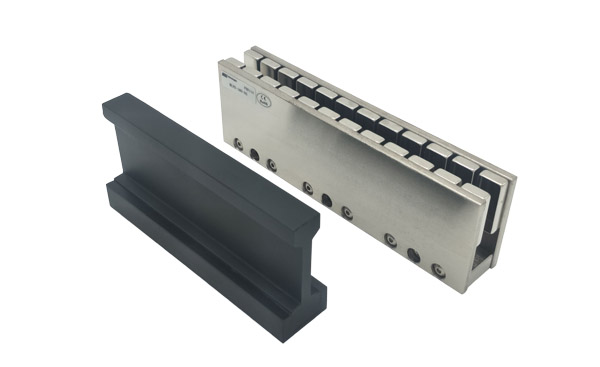

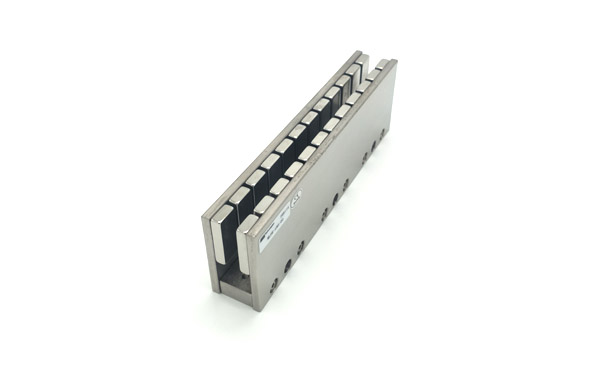

E Series
Product Features
Continuous Force:33N-114N Peak Force:99N-342N
Details|

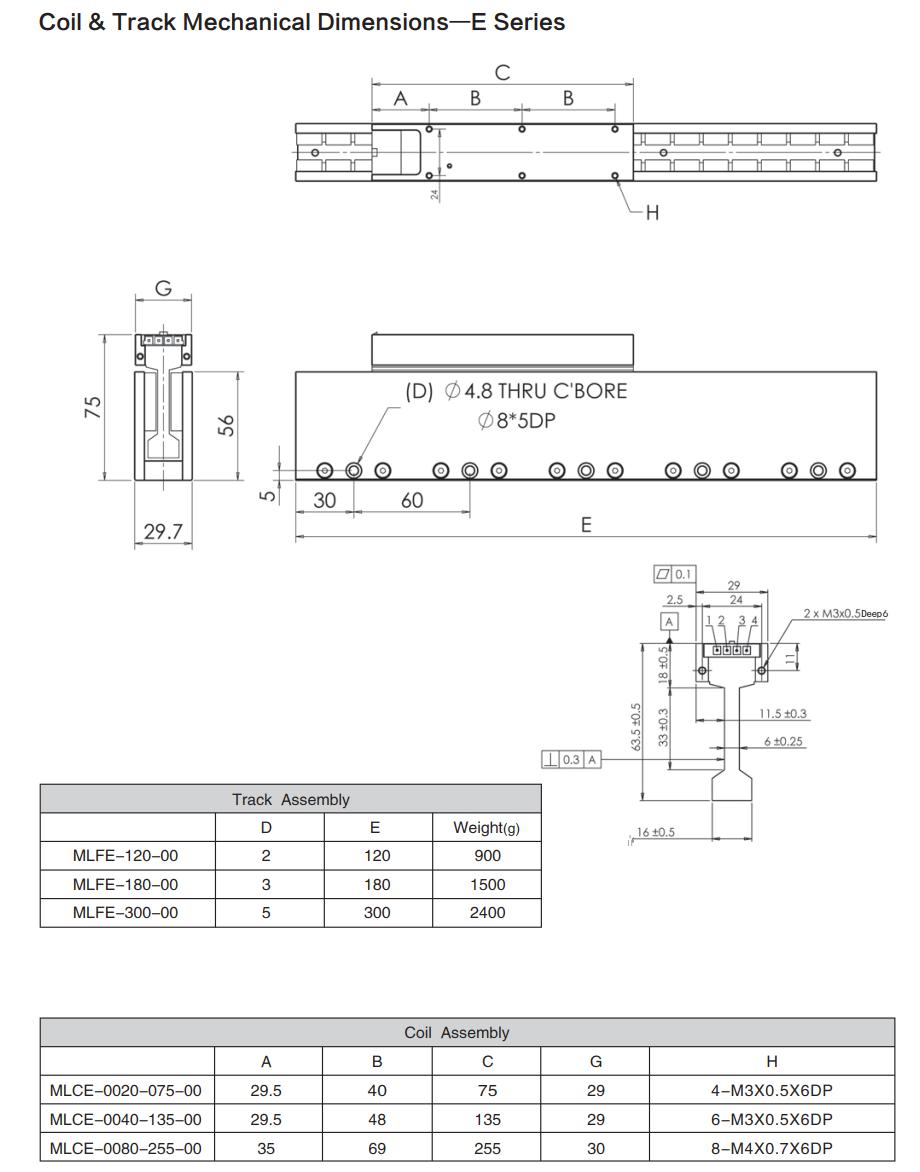

Size|
Recommend|
Case
Performance | |||||
Performance | Units | MLCE-0020-075-00 | MLCE-0040-135-00 | MLCE-0080-255-00 | |
Peak Force | N | 99 | 171 | 342 | |
Continuous Force | N | 33 | 57 | 114 | |
Peak Power | W | 180 | 360 | 522 | |
Rated Power | W | 20 | 40 | 58 | |
Electric Parameters | |||||
Electric Parameters | Units | MLCE-0020-075-00 | MLCE-0040-135-00 | MLCE-0080-255-00 | |
Peak Current | A | 6.6 | 5.7 | 5.7 | |
Continuous Current | A | 2.2 | 1.9 | 1.9 | |
Force Constant | N/Arms | 15.3 | 30.4 | 60.3 | |
Bank EMF Constant | V/m/sec | 8.8 | 17.55 | 34.8 | |
Motor Constant | N/W | 5.65 | 7.95 | 11.15 | |
Inductance | mH | 1.51 | 3.02 | 6.06 | |
Resistance(p-p)(25℃) | Ohms | 4.8 | 9.6 | 19.4 | |
Thermal Parameters | |||||
Thermal Parameters | Units | MLCE-0020-075-00 | MLCE-0040-135-00 | MLCE-0080-255-00 | |
Thermal Resistance | ℃/W | *3.9 | *1.9 | **1.3 | |
Max Winding Temp | ℃ | 120 | 120 | 120 | |
Thermal Resistance Measured with Heat Sink:(*200×200×12mm **250×250×10mm) | |||||
Mechanical Performance | |||||
Mechanical Performance | Units | MLCE-0020-075-00 | MLCE-0040-135-00 | MLCE-0080-255-00 | |
Weight of Coil | kg | 0.22 | 0.39 | 0.72 | |
Length of Coil | mm | 75 | 135 | 255 | |
Electric Cycle Length | mm | 30 | 30 | 30 | |
