Home >> Products >> Voice Coil Motor >> VLR Series Motor
Details|

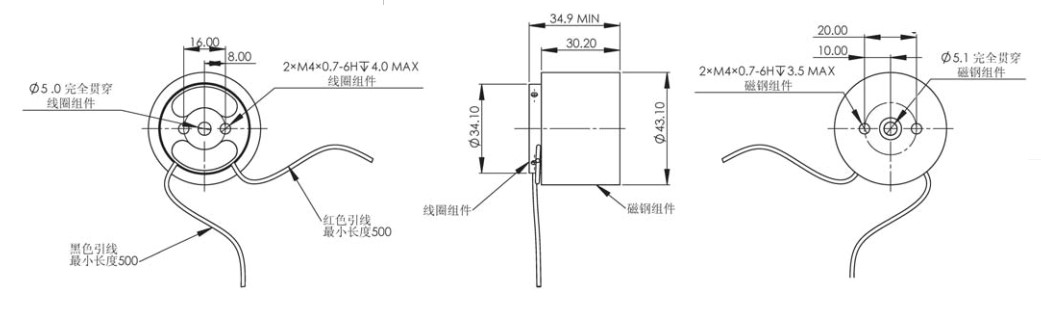

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
| VLR-0087-0062-00A | 87 | 21.7 | 37.8 | 34.5 | 6.85 | 12.7 | 12.7 | 5.04 | 1.05 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 5.65 | 0.21 | 8.5 | 2.8 | 150 | 6.2 | 0.5 | 45.2 | 257.8 | 303 |
