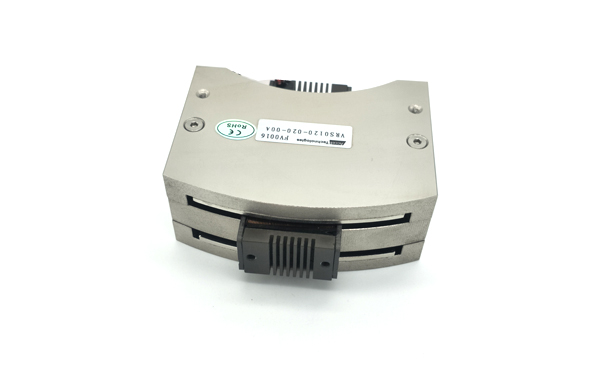

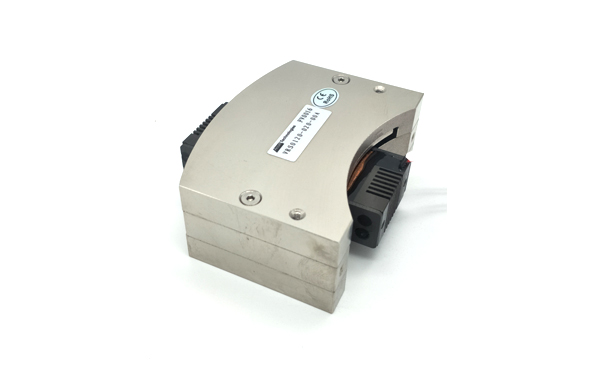

VRS Series Motor

VRS Series Motor

VRS series
Swing voice coil motor
Maximum Force: 0.08-45.2NM
Continuous Force: 0.05-20.6NM
Travel: 14-90 degrees

Details|

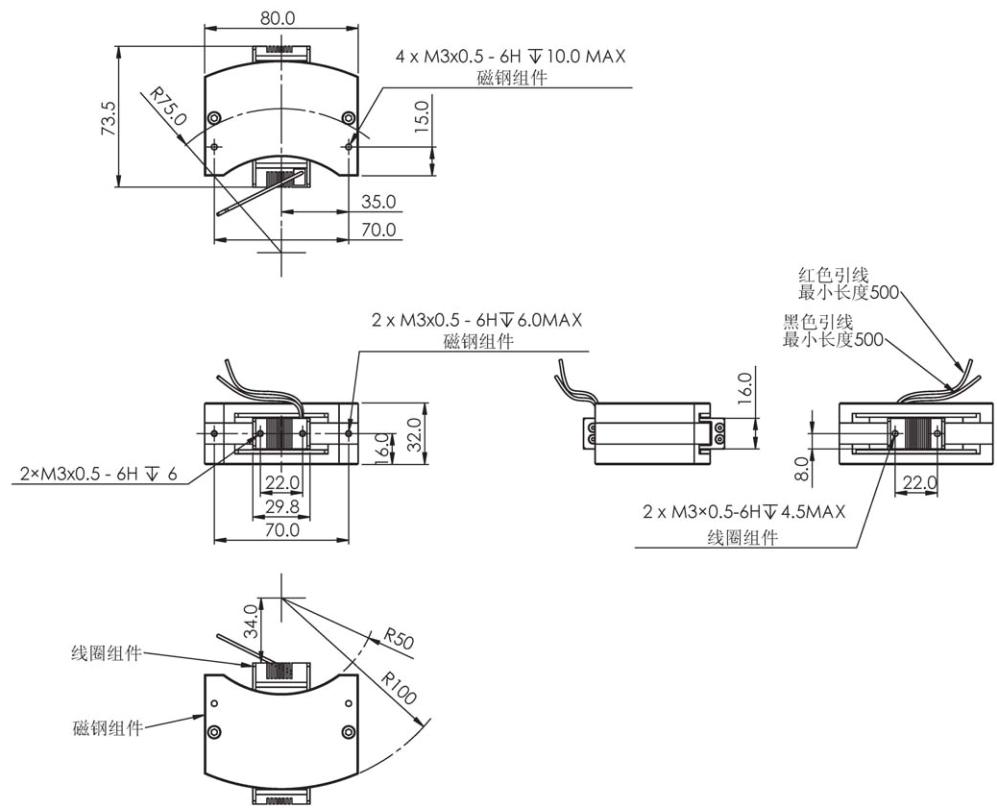

Size|

Recommend|

Case

PerformancePeak TorqueContinuous TorqueWith Heat Sink Continuous TorqueMaximum VoltageMaximum CurrentForce ConstantBank EMF ConstantResistanceInductance
UnitsN.mN.mN.mVAN/AV/R/sΩmH
VRS0120-020-00A 1.21.2 1.2 8.4 1.8 0.67 0.67 4.7 1.6
Motor Constantelectrical time constantThermal ResistanceWith Heat SinkThermal ResistanceMax Winding TempStrokeSide clearance of coilCoil Moment of InertiaCoil WeightMagnetic Steel WeightMotorTotal Weight
N/vW ms  ℃/W ℃/W ℃ mm mm g-cm² g g g
 0.31 0.34 7.53.9 150 20 0.5 3260 65 875 940


VRS0120-020-00A_Accel Technologies China
