MLCJ Series Motor

J Series
Product Features
Continuous Force:56N-195N Peak Force:168N-585N

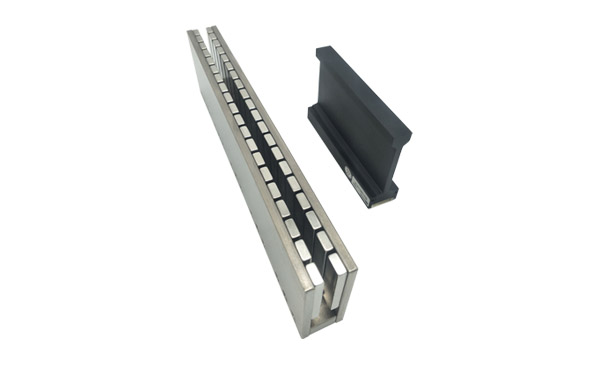

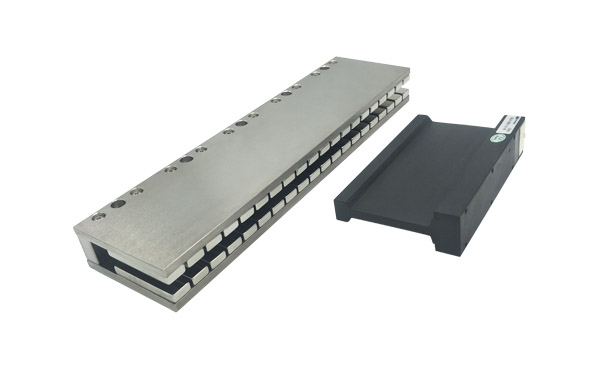

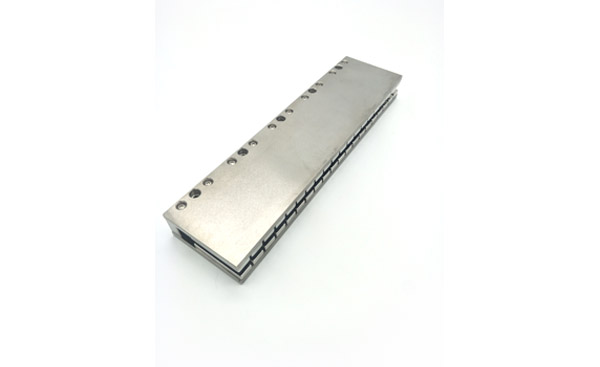

Coreless motor is called coreless motor because there is no iron core in the coil of the motor. Its motor coil frame is between two rows of magnetic rails, so it is also called "U slot" motor. Its copper windings are encapsulated and located in the air gap between the two magnets. Because the motor has no iron core, there will be no attraction and alveolar force between the applied parts and the magnetic track.
Advantages of Coreless Motor
Non-attractive, balanced dual-track, safe and easy to operate, there is no attraction problem in the assembly process.
There is no alveolar effect, no alveolar effect in force-applied parts without iron core, which can ensure the best smoothness.
Lightweight force components, because there is no iron core, have greater acceleration and deceleration, and higher mechanical bandwidth.
Air gap adjustment is adopted to facilitate alignment and installation.
No iron loss, low calorific value


Details|

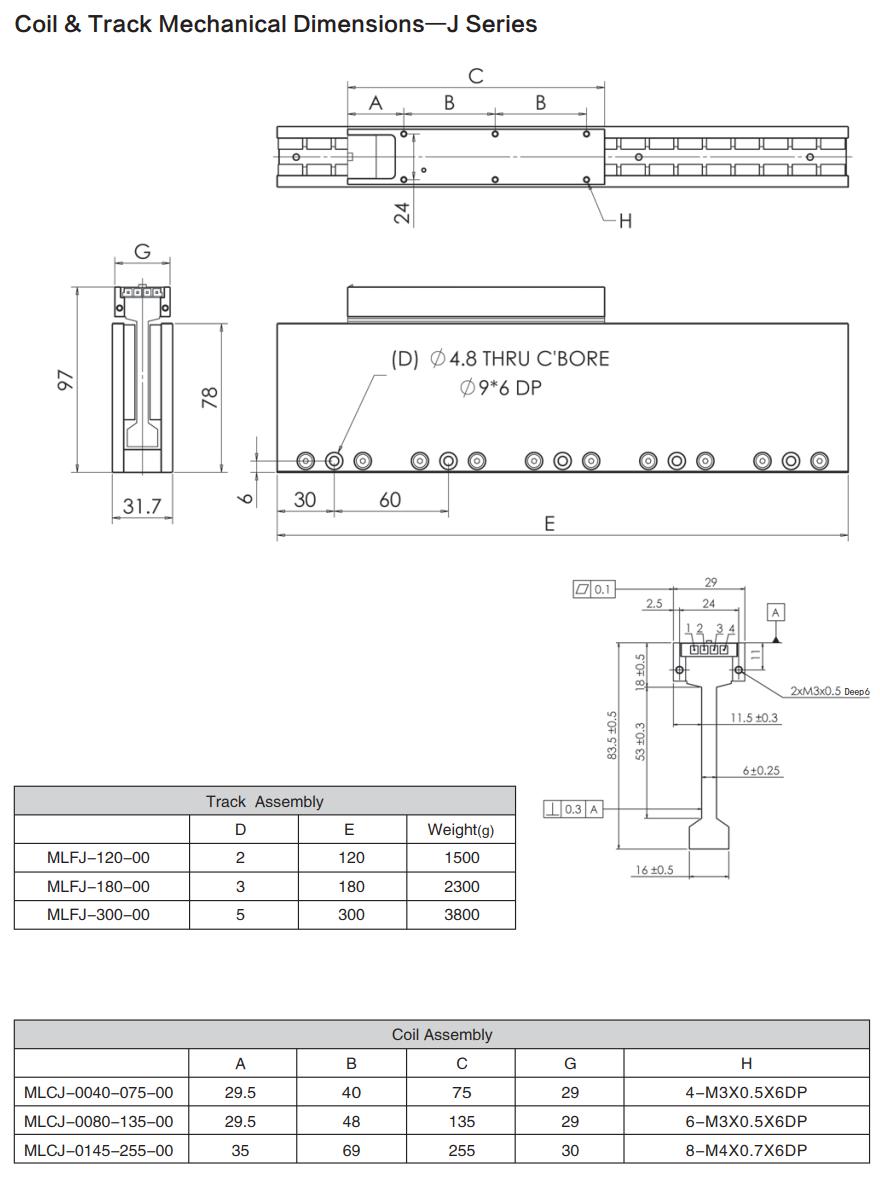

Size|

Recommend|

Case

Performance
PerformanceUnitsMLCJ-0040-075-00MLCJ-0080-135-00MLCE-0145-255-00
Peak ForceN168324585
Continuous ForceN56108195
Peak PowerW216360702
Rated PowerW244078

Electric Parameters
Electric ParametersUnitsMLCJ-0040-075-00MLCJ-0080-135-00MLCE-0145-255-00
Peak CurrentA6.96.66
Continuous Current A2.32.22
Force ConstantN/Arms24.649.597.5
Bank EMF ConstantV/m/sec14.228.656.3
Motor ConstantN/W8.412.0416.3
Inductance mH1.893.787.56
Resistance(p-p)(25℃)Ohms5.611.223.6

Thermal Parameters
Thermal ParametersUnitsMLCJ-0040-075-00MLCJ-0080-135-00MLCE-0145-255-00
Thermal Resistance℃/W*3.2*1.86**0.96
Max Winding Temp120120120
Thermal Resistance Measured with Heat Sink:(*200×200×12mm  **250×250×10mm)

Mechanical Performance



















MechanicalPerformanceUnitsMLCJ-0040-075-00MLCJ-0080-135-00MLCE-0145-255-00
Weight of Coilkg0.280.480.95
Length of Coil mm75135255
Electric Cycle Lengthmm303030
