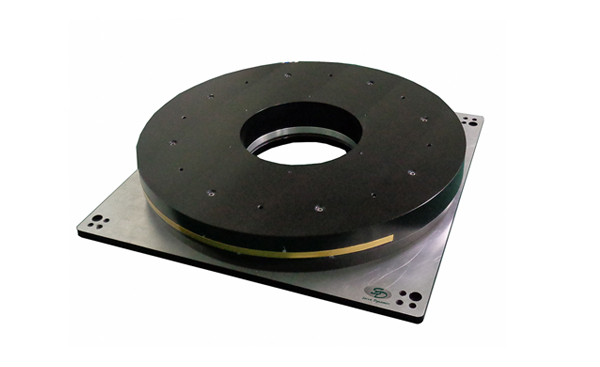

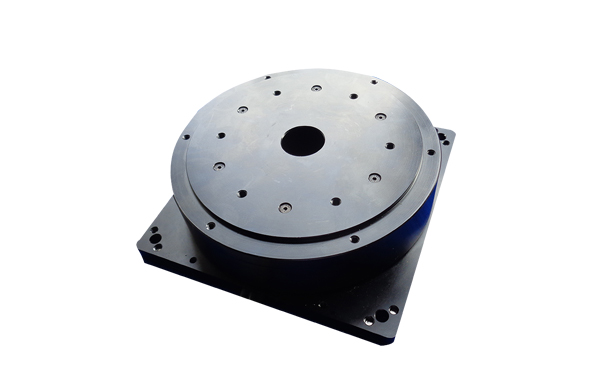

Coreless disc design with high precision bearing and grating feedback system
Details|
Size|
Recommend|
Case
| Performance | |||
| Winding Constant | tolerance | Units | Value |
| Back Emf Constant（P—P） | ±5% | V/rpm | 0.698 |
| DC resistance（P-P）@25℃ | ±5% | Ω | 6.7 |
| Inductance（P-P） | ±5% | mH | 6.41 |
| Torque Constant（P-P）±10% | ±5% | N.M/A | 2 |
| Electric Parameters | |||
| Electric Parameters | Units | Value | |
| Rated Current | Arms | 2 | |
| Rated Torque | N.M | 4 | |
| Thermal Parameters | |||
| Thermal Parameters | Units | Value | |
| Thermal Resistance | ℃/W | 1 | |
| Max Winding Temp | ℃ | 125 | |
| MechanicalProperties | |||
| MechanicalProperties | Units | Value | |
| Total Weight | Kg | 15 | |
| Number of Poles | Pair | 16 | |
