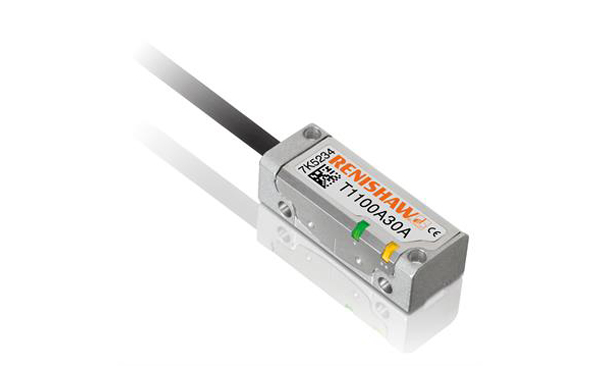

TONiC™ encoder system

TONiC™ encoder system

   The readhead is complemented by the latest evolution of RGSZ20 gold tape scale REXM ultra-high accuracy angle encoder and FASTRACK™/RTLC scale system with bi-directional optical IN-TRAC™ reference marksin addition to established RSLM stainless steel scaleRELM high accuracy low expansion high stability scale and RESM rotary rings.
   For ultimate reliability and high dirt immunity TONiC readheads incorporate third-generation filtering optics tuned for even lower noise (jitter) further enhanced by dynamic signal processing including Auto Gain Control and Auto Offset Control. The result is low sub-divisional error (SDE) giving smoother velocity control for improved scanning performance and increased positional stability.

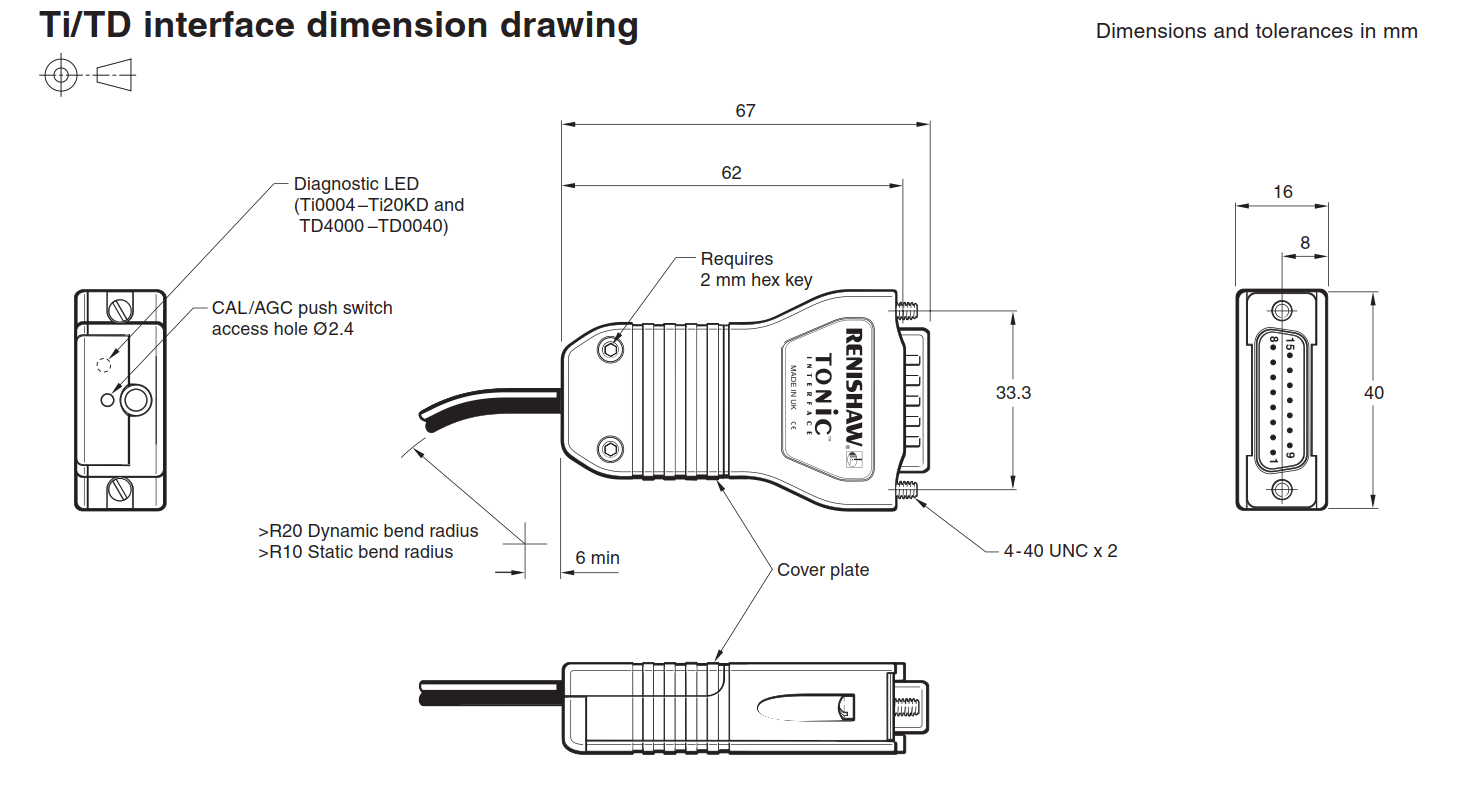

   TONiC readheads also feature a detachable analogue or digital interface in the form of a robust convenient connector that can be located up to 10 m from the readhead.The interface offers digital interpolation to 1 nm resolutionwith clocked outputs for optimised speed performance atall resolutions for industry-standard controllers.

Details|

Size|

Recommend|

Case

   The readhead is complemented by the latest evolution of RGSZ20 gold tape scale REXM ultra-high accuracy angle encoder and FASTRACK™/RTLC scale system with bi-directional optical IN-TRAC™ reference marksin addition to established RSLM stainless steel scaleRELM high accuracy low expansion high stability scale and RESM rotary rings.

   For ultimate reliability and high dirt immunity TONiC readheads incorporate third-generation filtering optics tuned for even lower noise (jitter) further enhanced by dynamic signal processing including Auto Gain Control and Auto Offset Control. The result is low sub-divisional error (SDE) giving smoother velocity control for improved scanning performance and increased positional stability.

   TONiC readheads also feature a detachable analogue or digital interface in the form of a robust convenient connector that can be located up to 10 m from the readhead.The interface offers digital interpolation to 1 nm resolutionwith clocked outputs for optimised speed performance atall resolutions for industry-standard controllers.

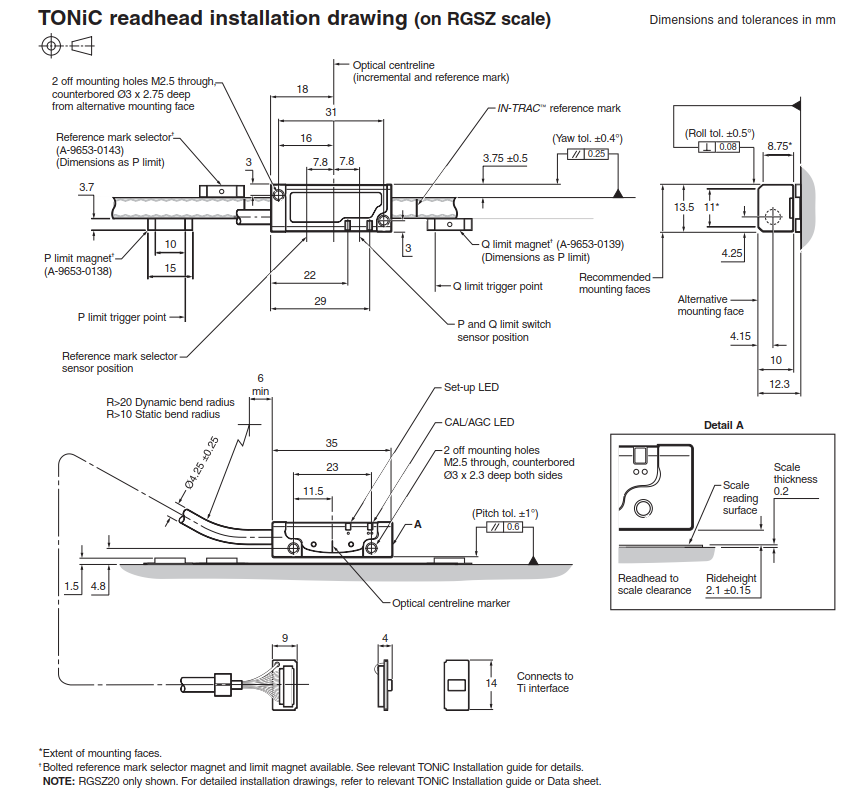

• Compact readhead (35 x 13.5 x 10 mm)
• Compatible with RGSZ20 gold tape scaleFASTRACK/RTLC scale system RSLM RELM RESM RESD and REXM with customer-selectable IN-TRAC auto-phase optical reference mark (datum)
• Third-generation filtering optics optimised for even lower noise (jitter)
• Dynamic signal processing provides ultra-low cyclic error of typically ±30 nm
• Auto Gain Control ensures consistent signal strength for long-term reliability
• Increased ride height tolerance and integral set-up LED for ease of installation

• Maximum speed to 10 m/s (3.24 m/s at 0.1 µm resolution)

• Detachable analogue or digital connector with integral interpolation to 1 nm resolution(0.00075 arc seconds)
• Integral dual limits (linear only)
• Operating temperature to 70 °C
• Dual resolution version available
