• Miniature package:
8.35 mm x 12.7 mm x 20.5 mm
(7.3 mm x 12.7 mm x 20.5 mm for FPC version)
• Highest signal stability and dirt immunity in
its class due to filtering optics
• Long-term stability provided by integral Auto Gain Control and Auto Offset Control
• Low Sub-Divisional Error (SDE) and jitter
• Easy installation and diagnostics using the set-up LED on the readhead
• Fast simple calibration at the push of a button
• Auto-phase optical reference mark
• Available in 20 µm and 40 µm scale pitch versions
• Analogue output direct from the readhead
• Multiple interpolation options with resolutions to 1 nm

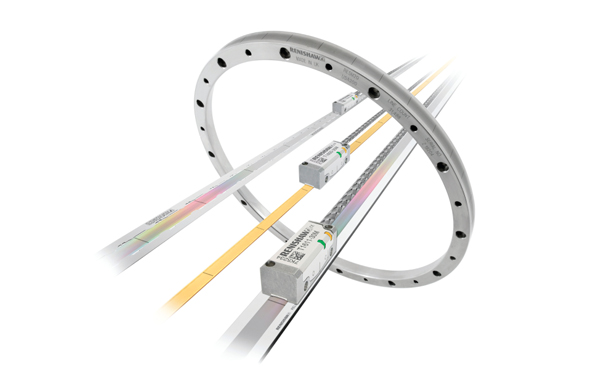

• Range of high accuracy rotary and linear scales
