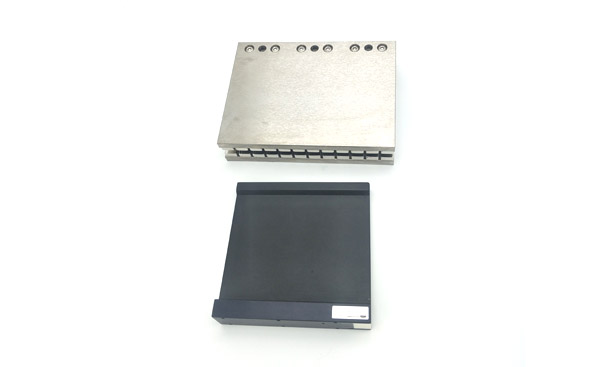

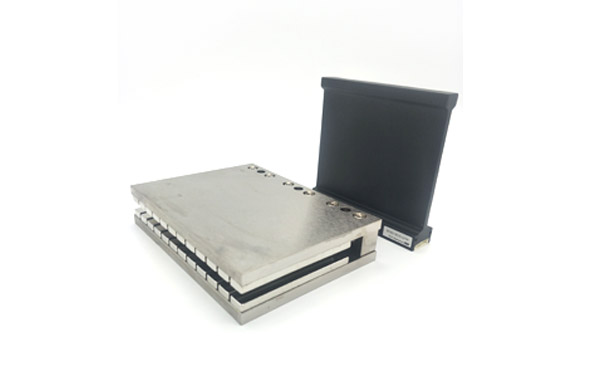

MLCT Series Motor

T Series
Product Features
Continuous Force:104N-351N Peak Force:312N-1053N

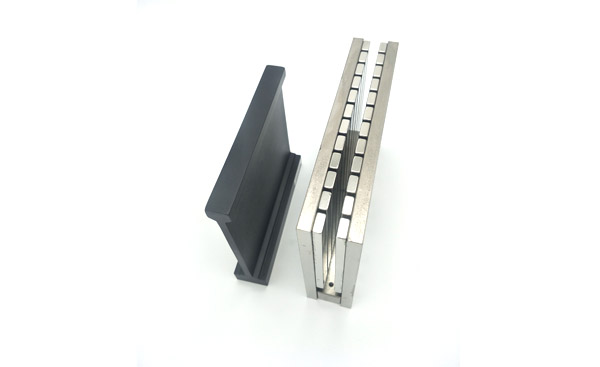

Coreless motor is called coreless motor because there is no iron core in the coil of the motor. Its motor coil frame is between two rows of magnetic rails, so it is also called "U slot" motor. Its copper windings are encapsulated and located in the air gap between the two magnets. Because the motor has no iron core, there will be no attraction and alveolar force between the applied parts and the magnetic track.
Advantages of Coreless Motor
Non-attractive, balanced dual-track, safe and easy to operate, there is no attraction problem in the assembly process.
There is no alveolar effect, no alveolar effect in force-applied parts without iron core, which can ensure the best smoothness.
Lightweight force components, because there is no iron core, have greater acceleration and deceleration, and higher mechanical bandwidth.
Air gap adjustment is adopted to facilitate alignment and installation.
No iron loss, low calorific value


Details|

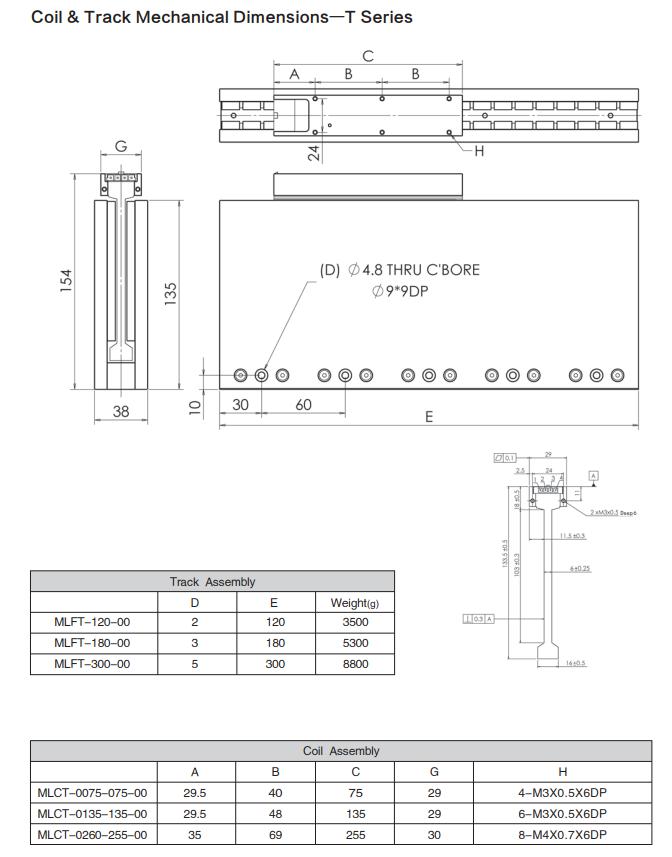

Size|

Recommend|

Case

Performance
PerformanceUnitsMLCT-0075-075-00MLCT-0135-135-00MLCT-0260-255-00
Peak ForceN3125701053
Continuous ForceN104190351
Peak PowerW342504936
Rated PowerW3856104

Electric Parameters
Electric ParametersUnitsMLCT-0075-075-00MLCT-0135-135-00MLCT-0260-255-00
Peak CurrentA6.6611.1
Continuous Current A2.223.7
Force ConstantN/Arms47.395.195.1
Bank EMF ConstantV/m/sec27.354.954.9
Motor ConstantN/W12.617.9925.5
Inductance mH3.16.223.13
Resistance(p-p)(25℃)Ohms9.218.49.2

Thermal Parameters
Thermal ParametersUnitsMLCT-0075-075-00MLCT-0135-135-00MLCT-0260-255-00
Thermal Resistance℃/W**2**1.35**0.72
Max Winding Temp120120120
Thermal Resistance Measured with Heat Sink:(*200×200×12mm  **250×250×10mm)

MechanicalPerformance
MechanicalPerformanceUnitsMLCT-0075-075-00MLCT-0135-135-00MLCT-0260-255-00
Weight of Coilkg0.450.81.52
Length of Coil mm75135255
Electric Cycle Lengthmm303030
