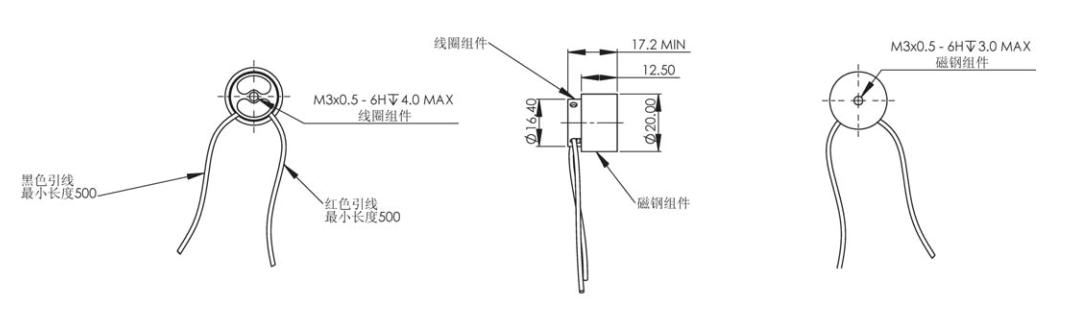

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
VLR-0006-0039-00A | 6.2 | 1.9 | 5.4 | 6.6 | 5.5 | 1.12 | 1.12 | 1.2 | 0.18 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
1.02 | 0.15 | 36.4 | 4.44 | 150 | 3.9 | 0.4 | 7.9 | 20 | 27.9 |
