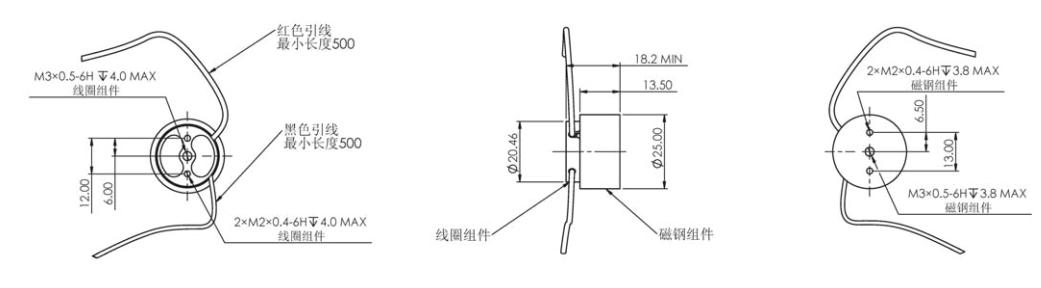

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
| VLR-0006-0050-00A | 6.2 | 2.6 | 4.57 | 15.7 | 1.74 | 3.57 | 3.57 | 9.05 | 0.9 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 1.19 | 0.099 | 26.04 | 8.46 | 150 | 5 | 0.5 | 8.24 | 39.56 | 47.8 |
