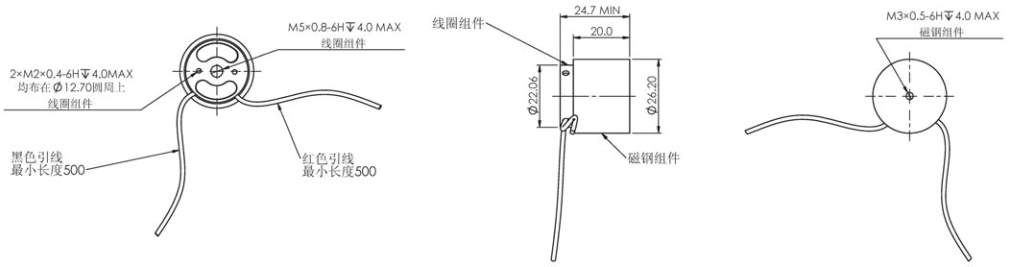

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
| VLR-0013-0072-00A | 13 | 4.2 | 9.54 | 26.6 | 2.3 | 5.72 | 5.72 | 11.7 | 2.63 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 1.67 | 0.22 | 19.8 | 3.84 | 150 | 7.2 | 0.5 | 16.2 | 57.9 | 74.1 |
