Details|
Size|
Recommend|

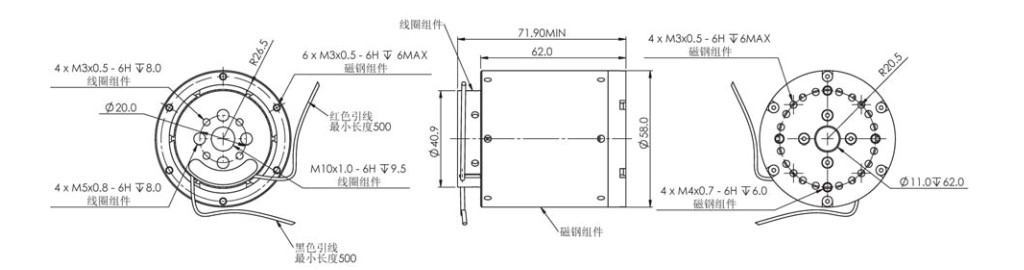

Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
VLR-0033-0224-00A | 33 | 13.5 | 16.4 | 26.7 | 4.9 | 6.8 | 6.8 | 5.5 | 1.8 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
2.9 | 0.33 | 5.8 | 3.9 | 150 | 22.4 | 0.5 | 75 | 1025 | 1100 |
