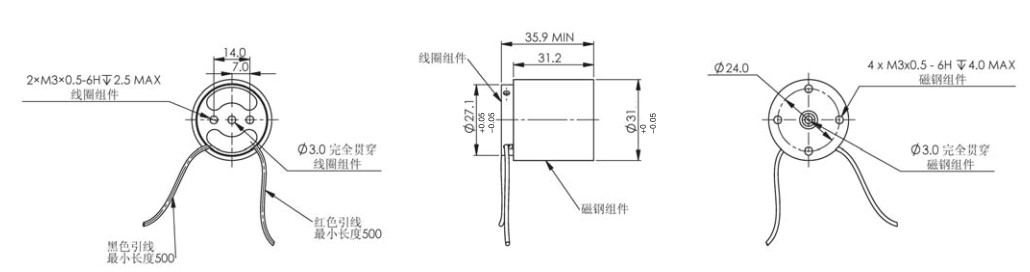

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
VLR-0044-0075-00A | 44 | 13.7 | 28.3 | 16.8 | 5.8 | 7.6 | 7.6 | 2.9 | 0.74 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
4.5 | 0.26 | 13.3 | 3.1 | 150 | 7.5 | 0.4 | 38.6 | 113.7 | 152.3 |
