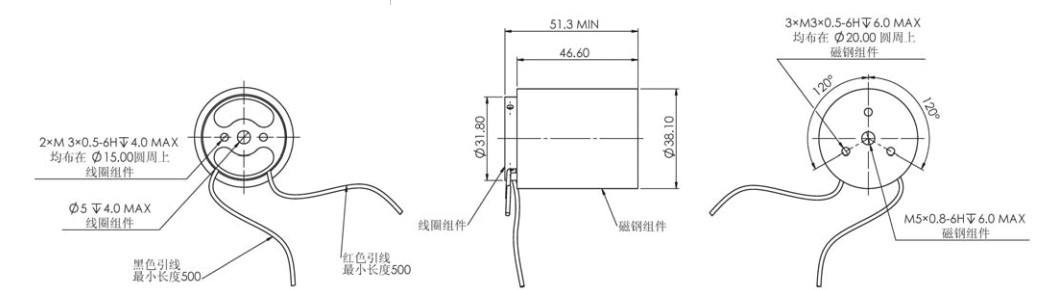

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
VLR-0044-0249-00A | 44 | 11.7 | 15.8 | 44.9 | 4.95 | 8.88 | 8.88 | 9.07 | 4.2 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
2.95 | 0.46 | 7.95 | 4.36 | 150 | 24.9 | 0.5 | 65.9 | 302.1 | 368 |
