Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |

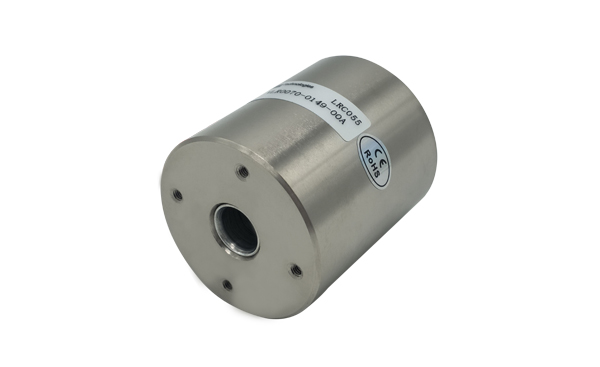

VLR-0070-0149-00A | 70 | 27.3 | 40 | 26.9 | 4 | 17.7 | 17.7 | 6.8 | 2.5 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
6.8 | 0.37 | 7.7 | 3.6 | 150 | 14.9 | 0.4 | 79 | 283 | 462 |
