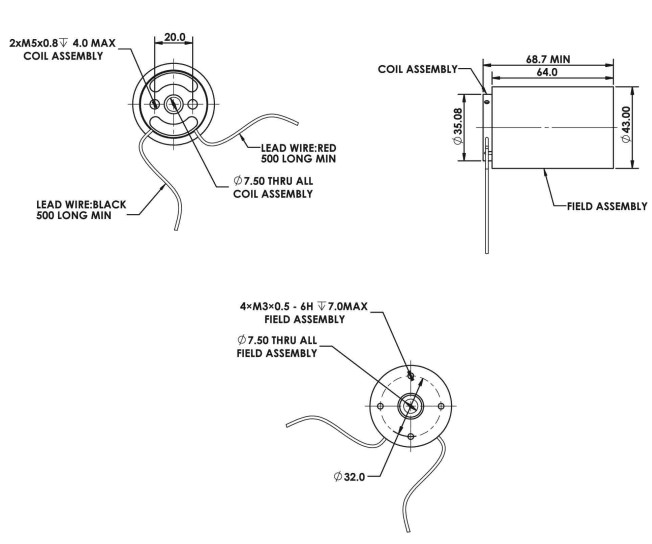

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
| VLR-0085-0220-00A | 85 | 31 | 42 | 40 | 4 | 21.2 | 21.2 | 10.02 | 6.4 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 6.7 | 0.37 | 10.8 | 3.6 | 150 | 22 | 0.4 | 106 | 500 | 606 |
