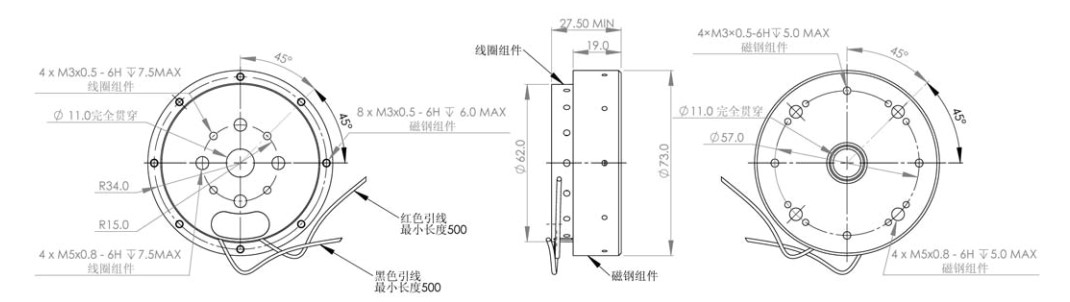

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
VLR-0113-0089-00A | 113 | 35 | 56.5 | 31 | 6.5 | 17.5 | 17.5 | 4.8 | 3 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
8 | 0.63 | 6.5 | 2.5 | 150 | 8.9 | 0.5 | 130 | 470 | 600 |
