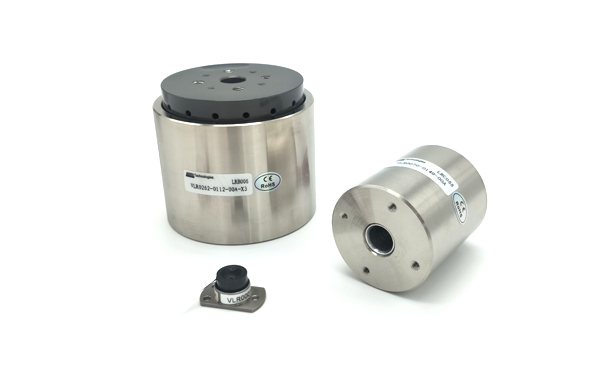

Home >> Products >> Voice Coil Motor >> VLR Series Motor
Details|

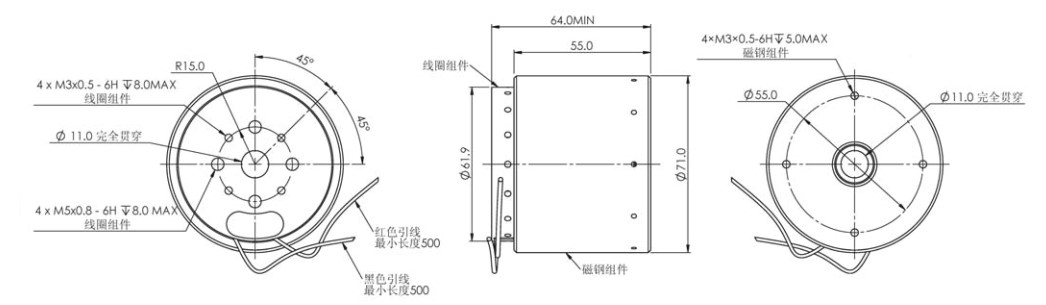

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
| VLR-0262-0112-00A | 262 | 111 | 160 | 35.1 | 6.4 | 41 | 41 | 5.5 | 4.3 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 17.5 | 0.78 | 3.1 | 1.5 | 150 | 11.2 | 0.5 | 275 | 1160 | 1435 |
