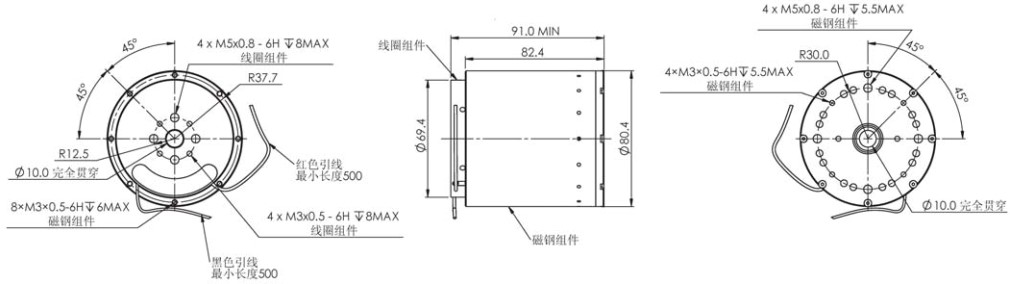

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
VLR-0436-0187-00A | 436 | 174.6 | 204.7 | 40.7 | 10.7 | 40.7 | 40.7 | 3.8 | 6.2 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
20.9 | 1.6 | 2.5 | 1.3 | 150 | 18.7 | 0.5 | 640 | 1950 | 2590 |
