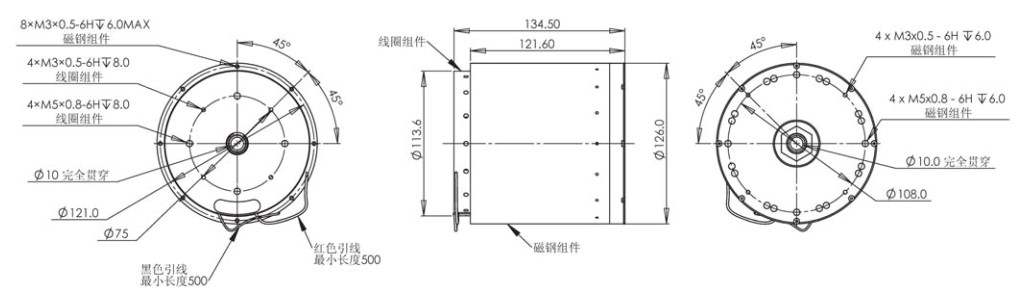

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/M/S | Ω | mH |
| VLR-0980-0249-00A | 980 | 605 | 649 | 41.5 | 9.4 | 104 | 104 | 4.4 | 6.3 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Coil Side Clearance | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 49.5 | 1.43 | 0.84 | 0.73 | 150 | 24.9 | 0.5 | 1390 | 9400 | 10790 |
