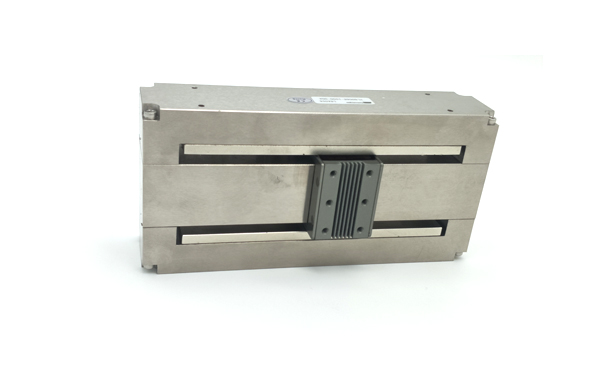

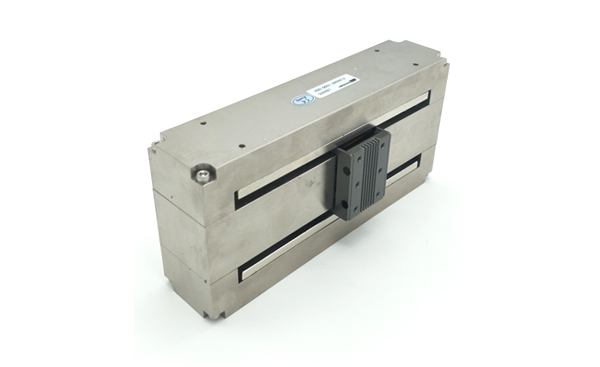

Home >> Products >> Voice Coil Motor >> VLS Series Motor
Details|

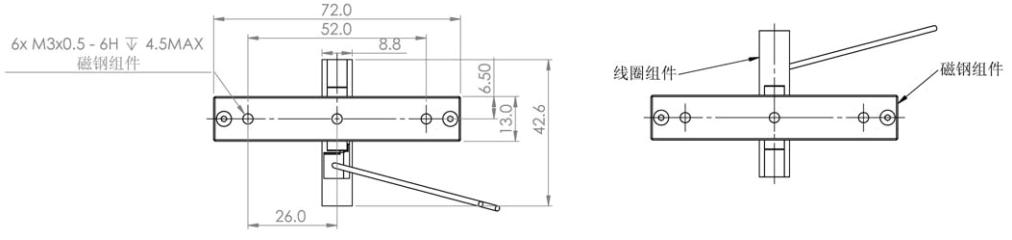

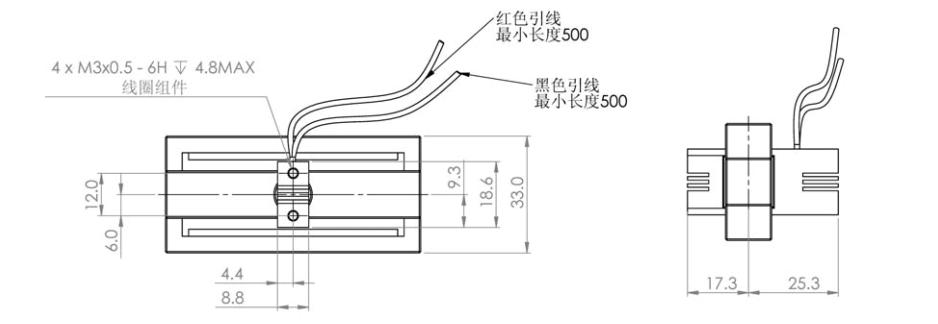

Size|
Recommend|
Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
| Units | N | N | N | V | A | N/A | V/m/s | Ω | mH |
| VLS0002-0498-00A | 2.1 | 1.3 | 2.1 | 11.3 | 1.6 | 1.3 | 1.3 | 7 | 0.9 |
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Magnetic Steel Weight | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
| 0.49 | 0.13 | 17 | 6.1 | 150 | 49.8 | 0.5 | 16 | 190 | 206 |
