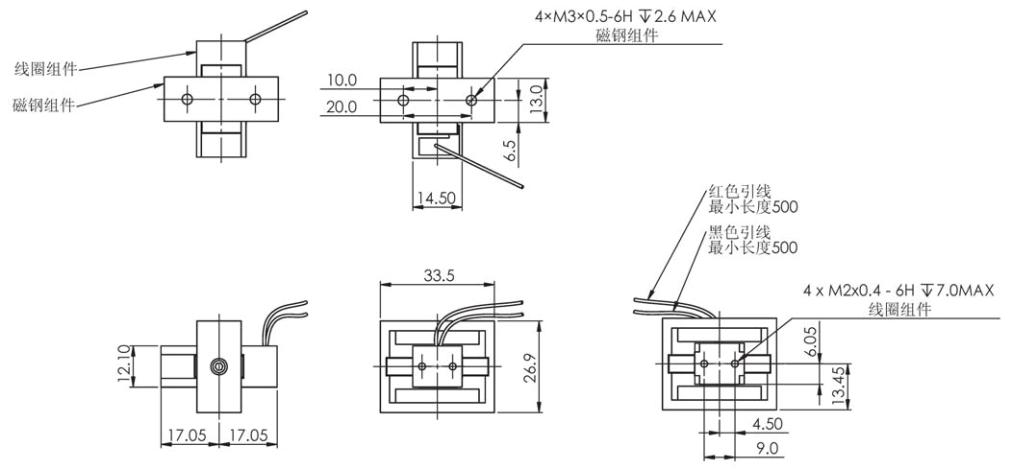

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance |
Units | N | N | N | V | A | N/A | V/m/s | Ω | mH |
VLS0006-0099-00A | 6.1 | 3.2 | 5.3 | 13.7 | 1.3 | 4.6 | 4.6 | 10.3 | 2 |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Magnetic Steel Weight | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g | g | g |
1.43 | 0.2 | 25.3 | 9.2 | 150 | 10 | 0.5 | 18 | 65 | 83 |
