Home >> Products >> Voice Coil Motor >> VRS Series Motor
Details|

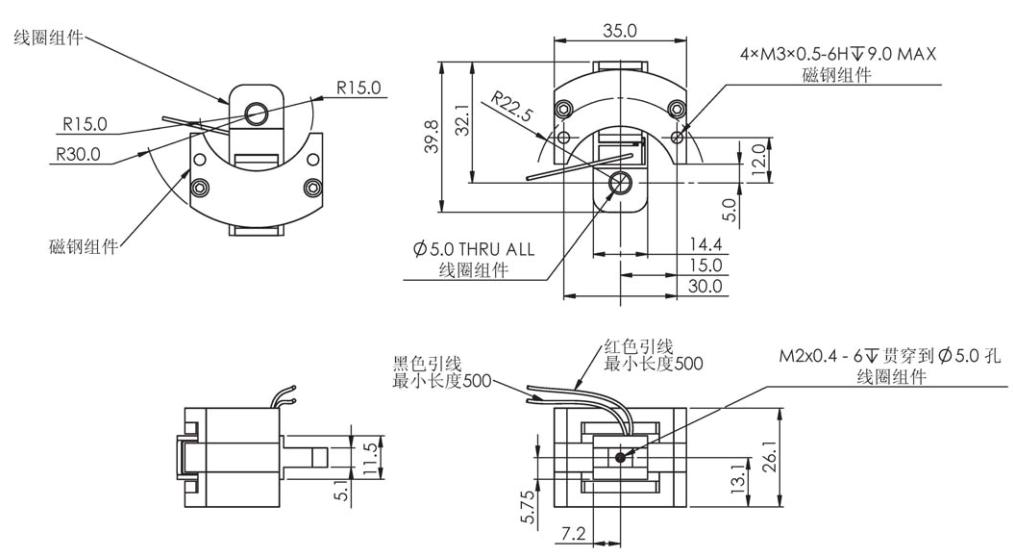

Size|
Recommend|
Case
| Performance | Peak Torque | Continuous Torque | With Heat Sink Continuous Torque | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance | ||||||||||||
| Units | N.m | N.m | N.m | V | A | N/A | V/R/s | Ω | mH | ||||||||||||
| VRS0706-014-00A | 0.08 | 0.05 | 0.07 | 3.6 | 1.78 | 0.045 | 0.045 | 3.6 | 0.39 | ||||||||||||
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Deflection Angle | Side clearance of coil | Coil Moment of Inertia | Coil Weight | Magnetic Steel Weight | MotorTotal Weight | |||||||||||
| N/√W | ms | ℃/W | ℃/W | ℃ | º | mm | g-cm² | g | g | g | |||||||||||
| 0.023 | 0.108 | 27.6 | 13.9 | 150 | 26 | 0.5 | 10.4 | 11.7 | 104.3 | 116 |
