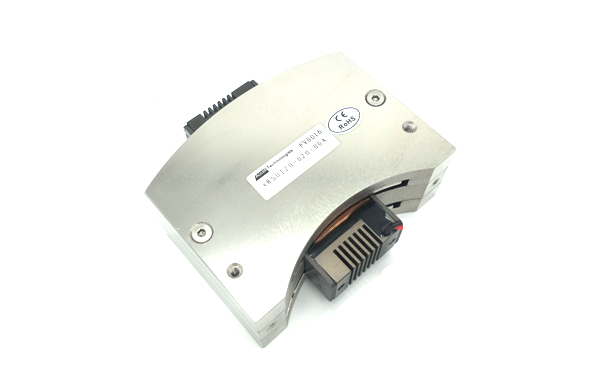

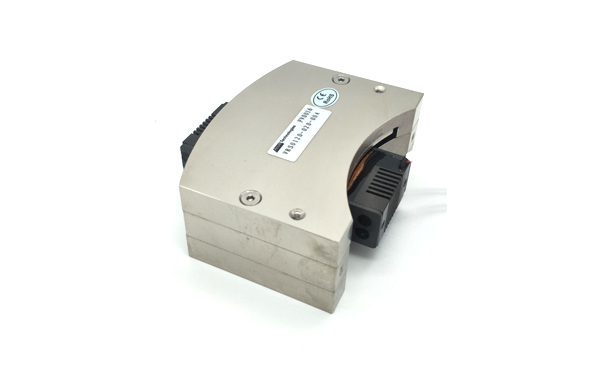

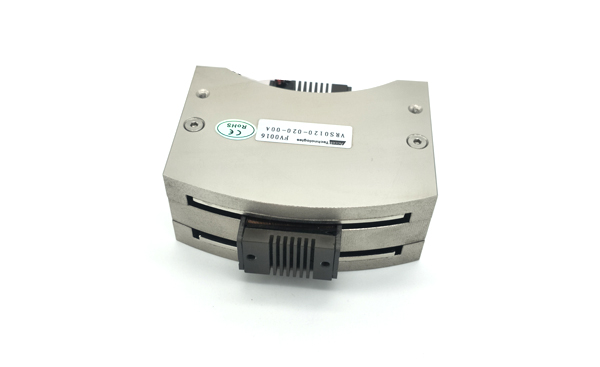

Home >> Products >> Voice Coil Motor >> VRS Series Motor
Details|

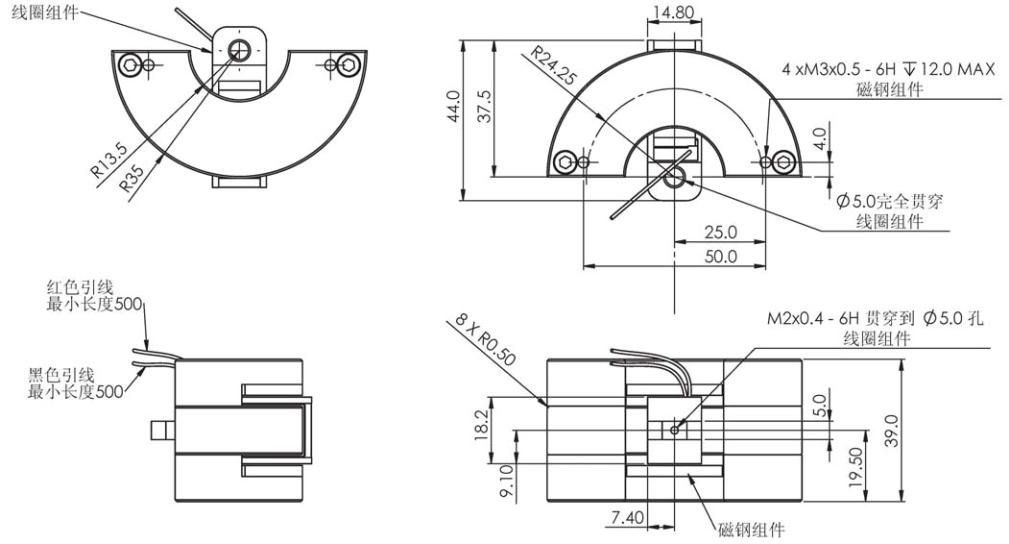

Size|
Recommend|
Case
| Performance | Peak Torque | Continuous Torque | With Heat Sink Continuous Torque | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance | ||||||||||||
| Units | N.m | N.m | N.m | V | A | N/A | V/R/s | Ω | mH | ||||||||||||
| VRS0706-014-00A | 0.17 | 0.1 | 0.16 | 11.1 | 1.5 | 0.11 | 0.11 | 7.2 | 1.4 | ||||||||||||
| Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Deflection Angle | Side clearance of coil | Coil Moment of Inertia | Coil Weight | Magnetic Steel Weight | MotorTotal Weight | |||||||||||
| N/√W | ms | ℃/W | ℃/W | ℃ | º | mm | g-cm² | g | g | g | |||||||||||
| 0.04 | 0.19 | 17.8 | 7.8 | 150 | 90 | 0.5 | 90.8 | 18 | 432 | 450 | |||||||||||
