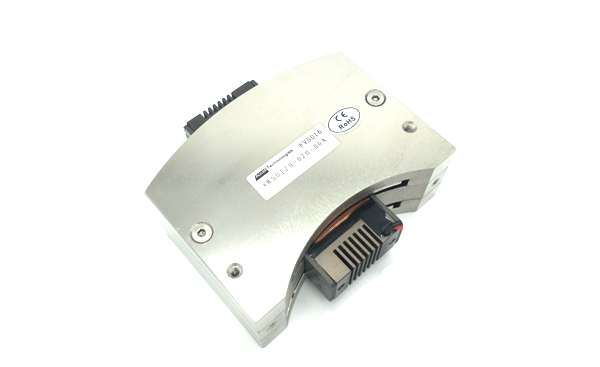

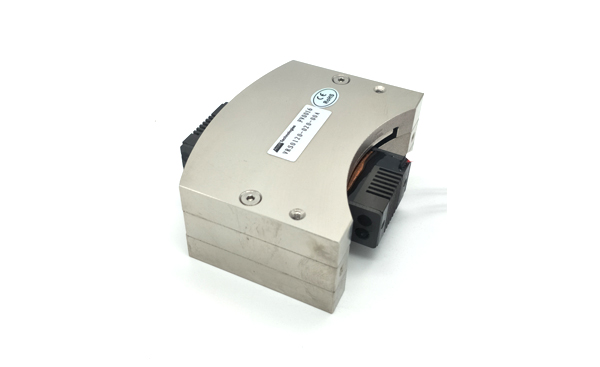

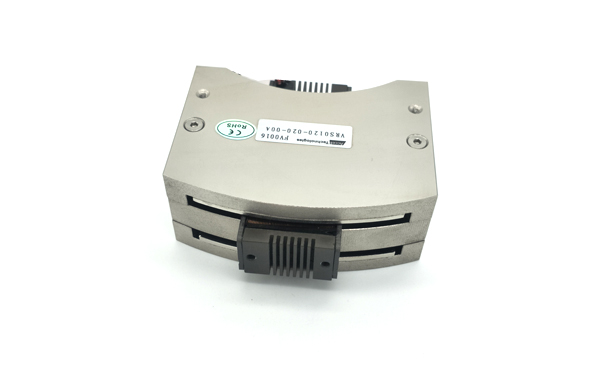

VRS Series Motor

VRS Series Motor

VRS Series
Swing voice coil motor
Maximum Torque: 0.08-45.2NM
Continuous Torque: 0.05-20.6NM
Travel: 14-90 degrees

Details|

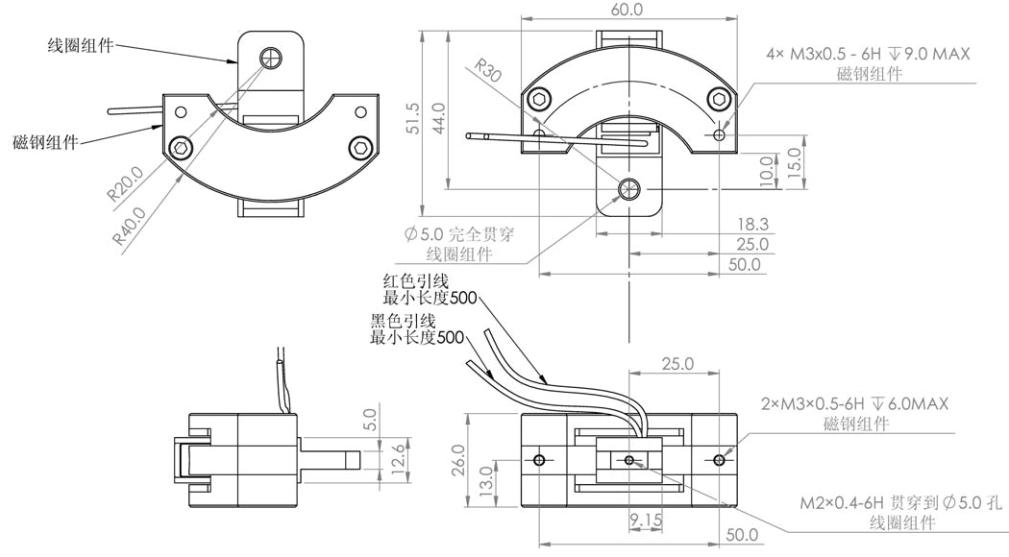

Size|

Recommend|

Case

PerformancePeak TorqueContinuous TorqueWith Heat Sink Continuous TorqueMaximum VoltageMaximum CurrentForce ConstantBank EMF ConstantResistanceInductance
UnitsN.mN.mN.mVAN/AV/R/sΩmH
VRS0022-032-00A 0.220.12  0.1815.5 1.4 0.16 0.16 11.3 2
Motor Constantelectrical time constantThermal ResistanceWith Heat SinkThermal ResistanceMax Winding TempStrokeSide clearance of coilCoil Moment of InertiaCoil WeightMagnetic Steel WeightMotorTotal Weight
N/√Wms℃/W℃/Wºmmg-cm²ggg
0.05 0.18 18.2 8.5 150 32  0.5130 21.5 217 238.5


VRS0022-032-00A_Accel Technologies China
