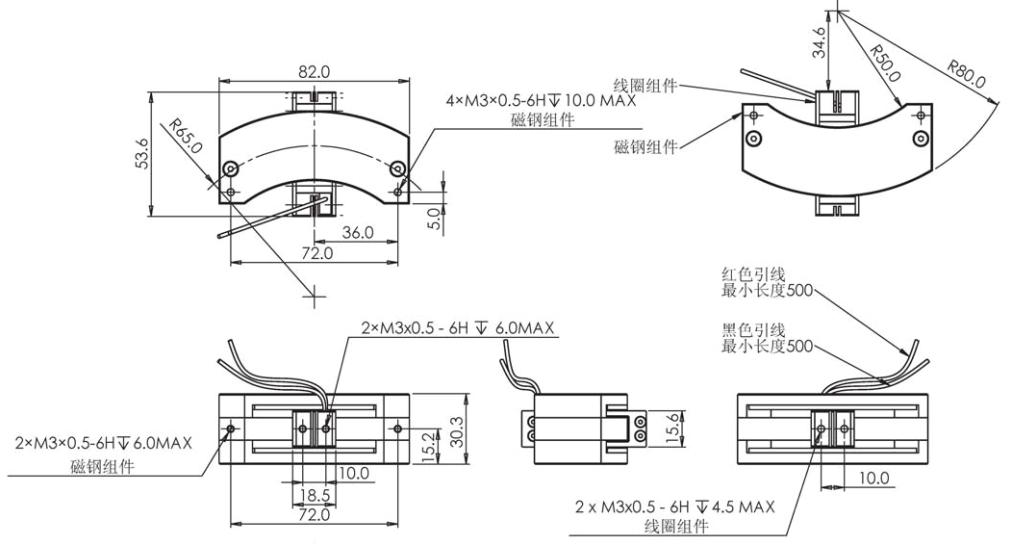

Size|
Recommend|
Case
Performance | Peak Torque | Continuous Torque | With Heat Sink Continuous Torque | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance | Inductance | |
Units | N.m | N.m | N.m | V | A | N/A | V/R/s | Ω | mH | |
VRS0042-040-00A | 0.42 | 0.38 | 0.42 | 3.5 | 3.5 | 0.12 | 0.12 | 1 | 0.3 | |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Side clearance of coil | Coil Moment of Inertia | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g-cm² | g | g | g |
0.12 | 0.3 | 12.5 | 6.3 | 150 | 40 | 0.5 | 1400 | 38 | 490 | 528 |
