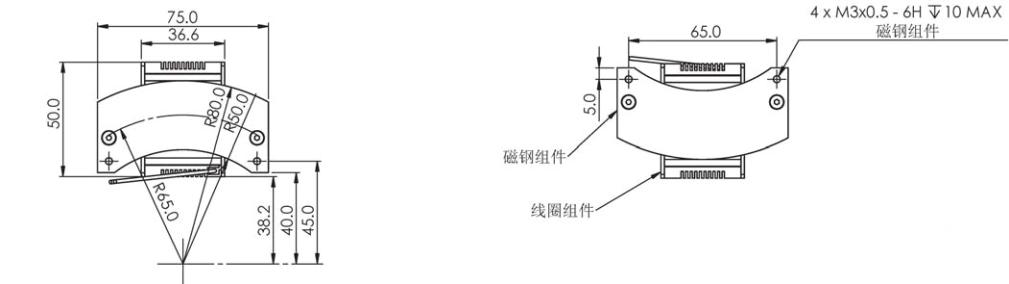

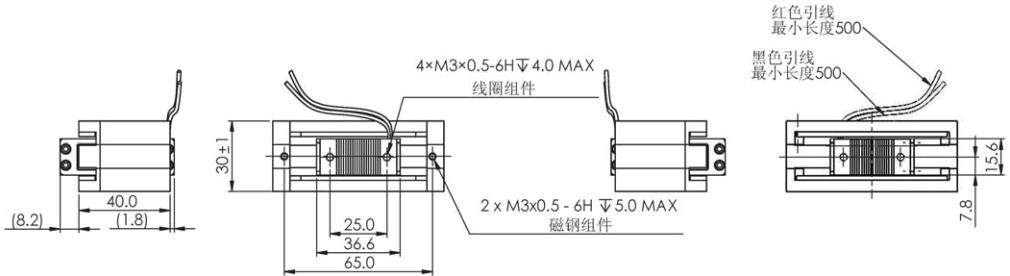

Size|
Recommend|
Case
Performance | Peak Torque | Continuous Torque | With Heat Sink Continuous Torque | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant常数 | Resistance | Inductance | |
Units | N.m | N.m | N.m | V | A | N/A | V/R/s | Ω | mH | |
VRS0077-020-00A | 0.77 | 0.63 | 0.77 | 6.7 | 3.2 | 0.24 | 0.24 | 2.1 | 0.84 | |
Motor Constant | electrical time constant | Thermal Resistance | With Heat SinkThermal Resistance | Max Winding Temp | Stroke | Side clearance of coil | Coil Moment of Inertia | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
N/√W | ms | ℃/W | ℃/W | ℃ | mm | mm | g-cm² | g | g | g |
0.166 | 0.4 | 8.7 | 4.6 | 150 | 20 | 0.5 | 4030 | 66 | 445 | 511 |
