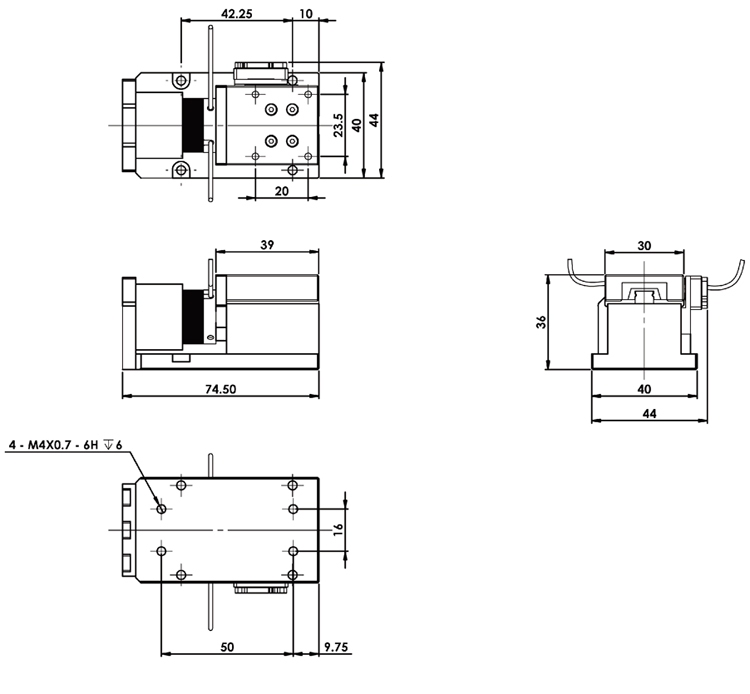

Case
| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance |
| Units | N | N | N | V | A | N/A | V/m/s | Ω |
| VCA0006-0080-00A | 6.2 | 2.6 | 4.57 | 15.7 | 1.74 | 3.57 | 3.57 | 9.05 |
| Inductance | Motor Constant | electrical time constant | Max Winding Temp | Stroke | Magnetic Steel Weight | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
| mH | N/vW | ms | ℃ | mm | mm | g | g | g |
| 0.9 | 1.19 | 0.099 | 150 | 8 | 0.5 | 13 | 46 | 218 |
