| Performance | Peak Force | Continuous Force | With Heat Sink Continuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance |
| Units | N | N | N | V | A | N/A | V/m/s | Ω |

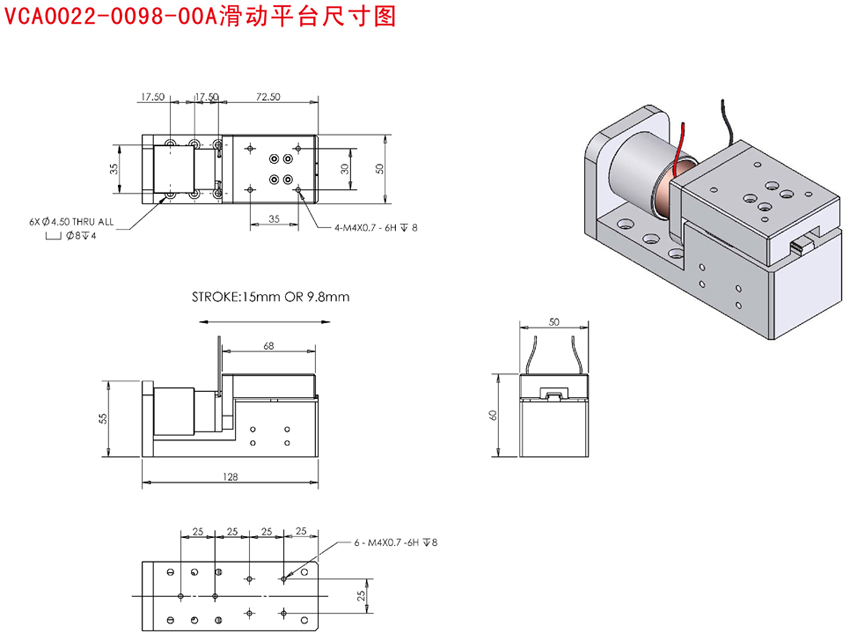

| VCA0022-0098-00A | 22 | 6.6 | 15.5 | 24.7 | 3.8 | 5.8 | 5.8 | 6.5 |
| Inductance | Motor Constant | electrical time constant | Max Winding Temp | Stroke | Magnetic Steel Weight | Coil Weight | Magnetic Steel Weight | Maximum load quality |
| mH | N/vw | ms | ℃ | mm | mm | g | g | g |
| 1 | 2.27 | 0.15 | 150 | 9.8 | 0.5 | 20 | 163 | 2000 |
