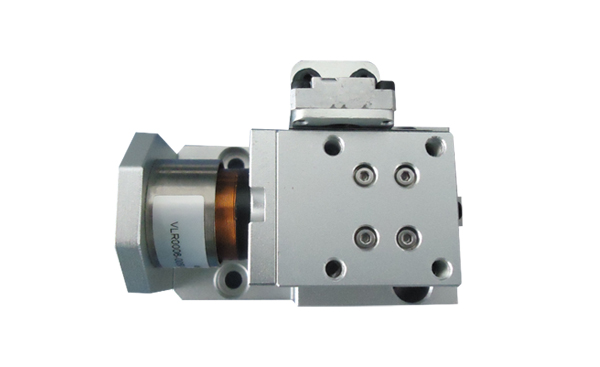

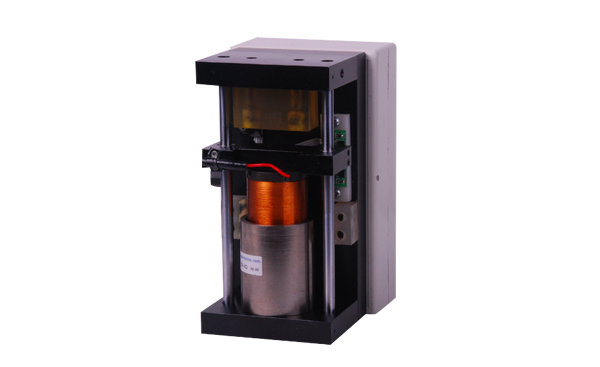

The hollow cylindrical coil voice coil motor has a high resolution grating system and a high precision cross roller guide.
Details|

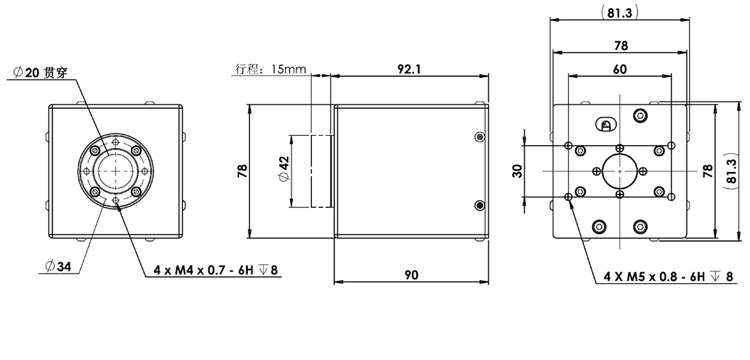

Size|
Recommend|
Case
Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance |
Units | N | N | N | V | A | N/A | V/m/s | Ω |
VCA0033-0150-00A | 33 | 13.5 | 16.4 | 26.7 | 4.9 | 6.8 | 6.8 | 5.5 |
Inductance | Motor Constant | electrical time constant | Max Winding Temp | Stroke | Magnetic Steel Weight | Coil Weight | Magnetic Steel Weight | MotorTotal Weight |
mH | N/vw | ms | ℃ | mm | mm | g | g | g |
1.8 | 2.9 | 0.33 | 150 | 15 | 0.5 | 70 | 400 | 1800 |
