| Performance | Peak Force | Continuous Force | With Heat SinkContinuous Force | Maximum Voltage | Maximum Current | Force Constant | Bank EMF Constant | Resistance |
| Units | N | N | N | V | A | N/A | V/m/s | Ω |

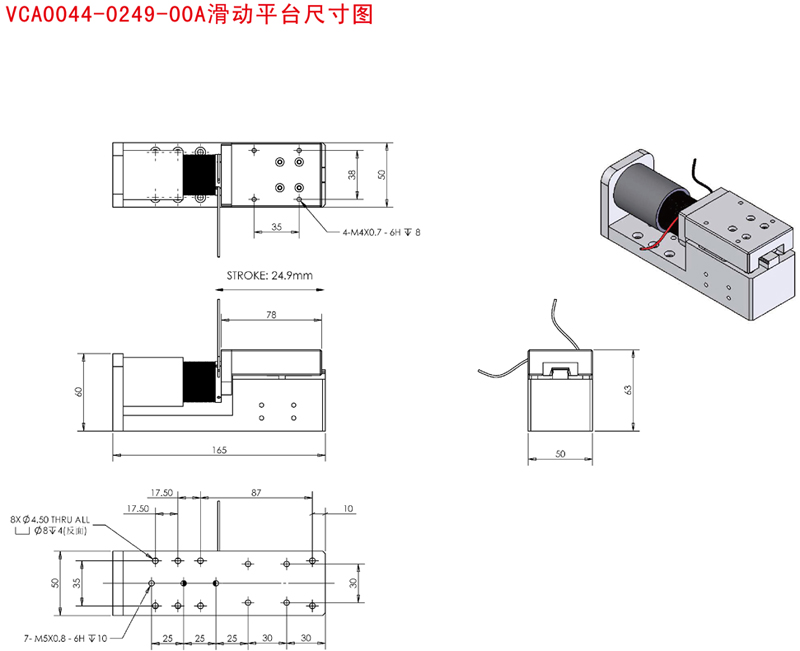

| VCA0044-0249-00A | 44 | 11.7 | 15.8 | 44.9 | 4.95 | 8.88 | 8.88 | 9.07 |
| Inductance | Motor Constant | electrical time constant | Max Winding Temp | Stroke | Magnetic Steel Weight | Coil Weight | Magnetic Steel Weight | Maximum load quality |
| mH | N/vW | ms | ℃ | mm | mm | g | g | g |
| 4.2 | 6.8 | 0.37 | 150 | 24.9 | 0.5 | 65.9 | 302.1 | 2000 |
