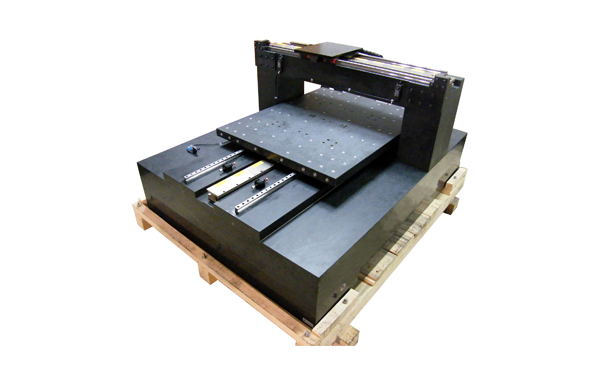

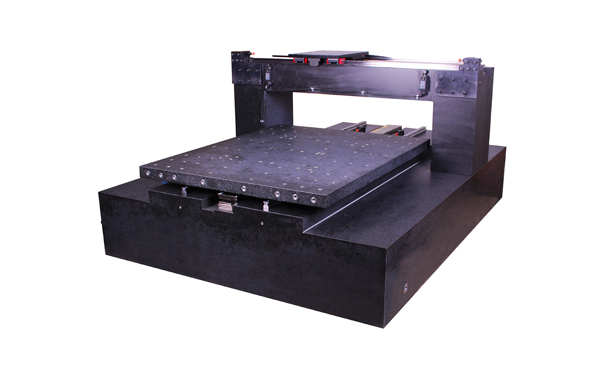

Air Floating High Precision

Travel: ≤1200 mm
Location accuracy: ±0.5m
Repeated positioning accuracy: ±0.1 M
Straightness: ±0.50 M
Flatness: ±0.50 M

Details|

Size|

Recommend|

Case

Travel: ≤1200 mm
Location accuracy: ±0.5m
Repeated positioning accuracy: ±0.1 M
Straightness: ±0.50 M
Flatness: ±0.50 M
Working principle
The main components of precision air-bearing positioning platform including base guide rail air-bearing slider and roof are driven by linear motor. The suspension working principle of the positioning platform is that compressed air with a certain air pressure is introduced into the air supply channel. The gas passes through the throttle hole to form a gas film of about 10 micron in the opposite surface of the air-bearing slider and the guide rail and the base and produces a certain suspension force. The sliding platform composed of the air-bearing slider and the roof is in one-dimensional linear motion. When the suspension force is balanced with the weight of the experimental platform the moving platform will move in a straight line. Stable suspension. When the air-bearing slider as the load of the system changes or has external disturbance the system itself achieves rebalancing by changing the gap between the air-bearing slider and the guide rail to change the suspension force; it has certain self-regulating ability. The sliding platform composed of the air-bearing slider and the roof supported by the gas film moves in a one-dimensional straight line.
Performance characteristics
Air-bearing table with linear motor direct drive greatly improves the processing ability of machine tools to meet the development needs of high-precision and high-speed equipment. It has become a hot spot in the research of high-precision and high-speed technology. The linear-driven high-speed precision air-bearing platform requires high positioning accuracy high speed and stable operation. The structure and motion control performance of air-bearing guideway are the key factors affecting the positioning performance speed acceleration motion characteristics and stability of air-bearing platform. Aiming at the characteristics of small friction damping and easy oscillation of air-bearing guideway the damping of the system is improved by adjusting the parameters of the speed loop in the controller and adding differential control in the position loop so as to improve the performance of the platform. In order to achieve high acceleration and positioning accuracy pole placement and proper feedforward compensation are adopted in the velocity loop.
electric control
On the basis of traditional parallel synchronization control a synchronization error compensator based on speed synchronization deviation is redesigned. In order to eliminate the influence of structural parameters on the control performance during the movement of the worktable the parameters of the PID controller are adjusted on-line adaptively by using fuzzy-PID control. In order to meet the requirements of high acceleration and high precision air-bearing positioning platform for the programmability and real-time of the control system. The control computer in the system is used to send motion parameters to the motion controller and draw motion curves so as to evaluate the performance of the platform. The control algorithm written according to the motion characteristics of chip package runs in the high performance processor of motion controller which can meet the requirements of programmability and real-time. The control method and the selection of control parameters affect the accuracy of the air-bearing platform system.
Auxiliary materials
Granite is the main material of ultra-precision air-floatation positioning platforms. The mechanical stability of granite is good after hundreds of millions of years of natural mechanical equilibrium. The internal stress basically disappears and the stability of internal structure can be maintained for a long time. The shape of granite itself is affected by temperature very small thermal expansion coefficient very small thermal conductivity is also low so the requirements for the surrounding environment are lower. Granite is easy to process and has good shock absorption. Compared with metal products other factors such as rust and corrosion are not considered. A relatively stable air-bearing mechanism can be obtained to realize the suspension system that uniformly floats the ultra-precision machining test bench when compressed air is ejected from the throttle hole.
